Horse Drawn Vehicle Parts
(Click on Thumbnail to Enlarge Image and View Description)
Seat Parts
-

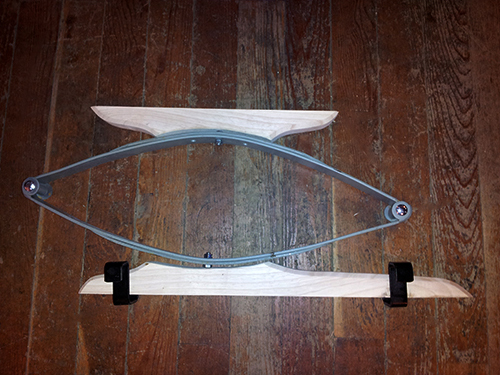

Spring Block Assembly Kit
Includes two sets of blocks, and four seat hangers. Springs sold separately.
PRICE: Please Call. $63 (springs not included)
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

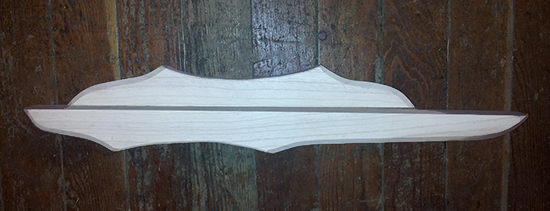

Spring Blocks
Spring blocks for wagon seats.
2 pairs of blocks required to make spring seat.
Made of hardwood.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

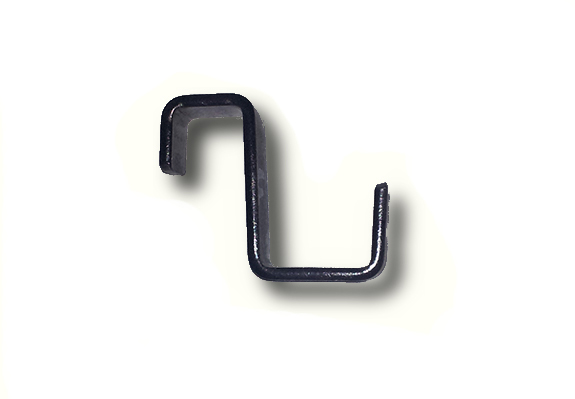

Seat Spring Hangars
Steel Bent Seat Spring Hangers for hanging seat on wagon side board.
Four are required for application.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
Gears
-

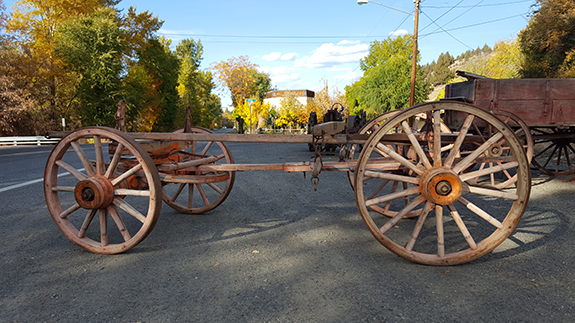

Farm Wagon/Freight Wagon
Antique Farm Wagon/Freight Wagon manufactured in West Bend, Wisconsin.
The gear wheels are 3" wide, 36" in the front and 42" in the rear.
Excellent condition.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

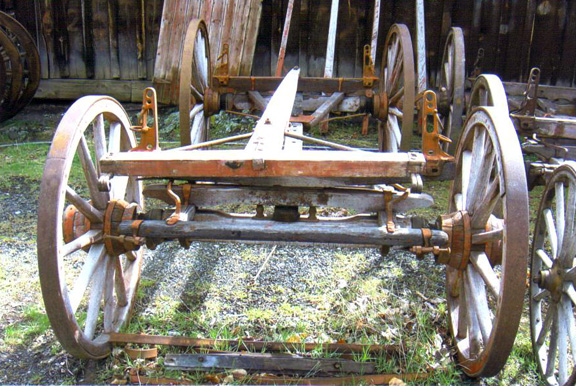

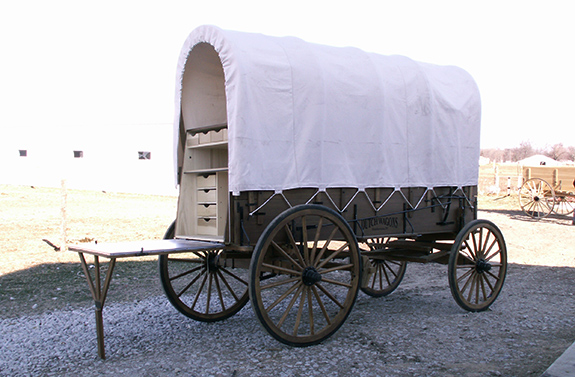

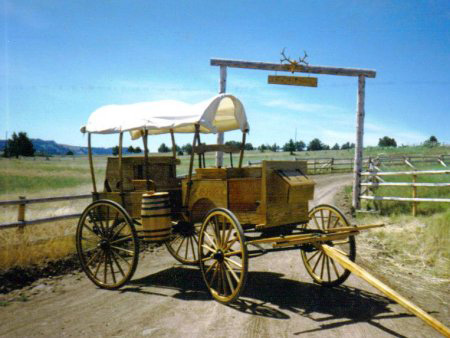

Used Farm or Covered Wagon Gear
Our standard covered wagon gear.
We can also make gears to your specifications.
Our covered wagon gears are priced with our short turn fifth wheel, roller bearing axles, reaches with angle iron. Iron body hangers.
Gears are available in kits, or assembled, with or without wheels, painted or unpainted.
Other types of gears available are with old style fifth wheels, single or double reach, spring bars with body loops, plain axles, (not roller bearing) drop or arch axles.
Large Gear: Front Wheels 46"
Back Wheels 58"
Wheel Width 2-1/2"
Smaller Gear: Front Wheels 42"
Back Wheels 48"
Wheel Width 2"
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

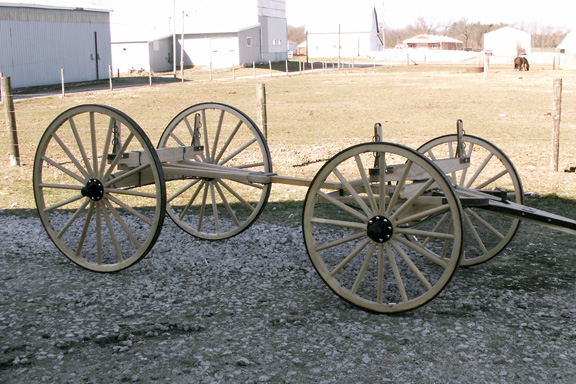

Horse Drawn Farm Wagon Gear
The farm wagon gear can be used as a farm wagon, covered wagon or a chuck wagon.
It comes unfinished.
It is available with steel tires or channel and rubber tires.
Gear can be made with any height.
Standard is 42" front and 50" in the rear.
It has roller bearing hubs and axles and is available in bolster (box) width of 38", 40" or 42".
It has 68" axle width.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

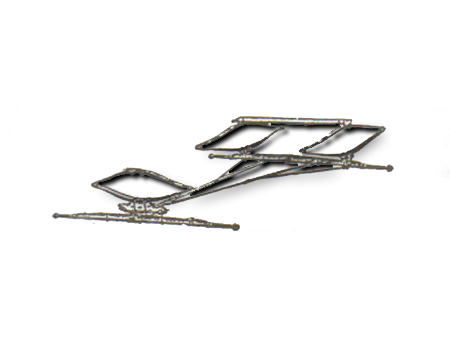

3 Spring Running Gear
For surreys, spring wagons, heavier vehicles. Unassembled, unpainted.
Complete kit includes rolling bearing wheels with rubber tires and the following:
1-18" axles and bearings.
Short-turn fifth wheel.
Front and rear axle caps.
Fifth wheel head block.
1-1.5" x 36" five-leaf spring.
Two 1-3/4" x 30" four leaf springs.
Reaches and braces.
Rear spring bar and body loops.
Front body hanger.
Two spring blocks.

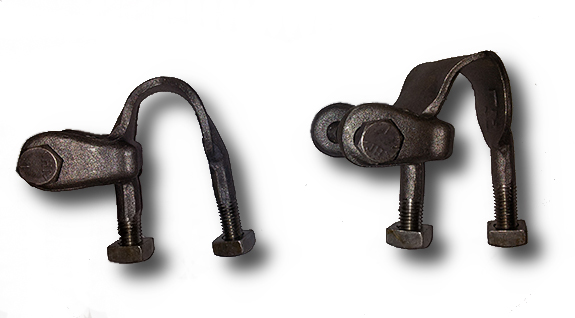

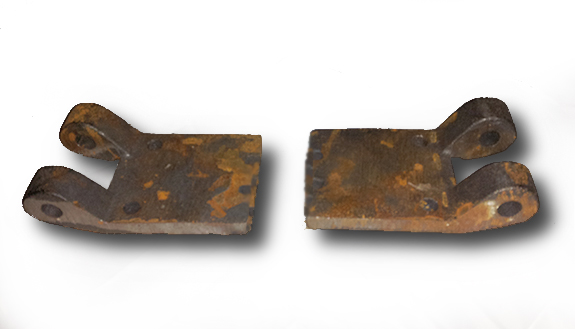

Shaft couplers.
Axle clips, clip bars, hexes and carriages.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

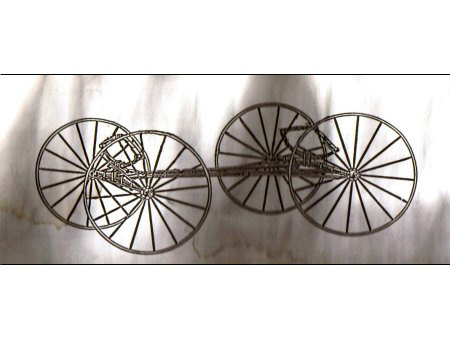

Two Spring Buggy Running Gear
Two spring buggy running gear comes with elliptical springs in the front and rear.
Tire size is 38" in the front and 42" in the rear.
Wheels are finished with roller bearing hubs and axles.
Smaller front wheels are available for a cut under vehicle.
Wheels can be finished in steel or channel/rubber.
Comes with standard shaves, but team pole is also available.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

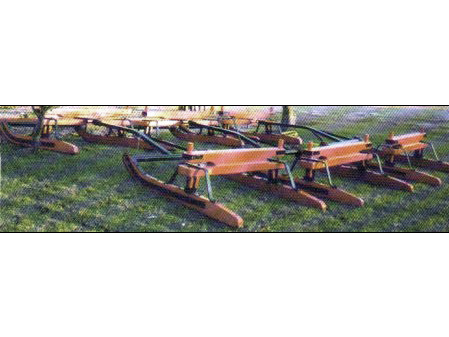

Medium Bobsled Gears
Medium Bobsled: Runners are 42" apart with a 4" x 5" bolster.
Pulls easier that the wide one, popular under a double or triple box. These runners will follow a horse's tracks best.
Features on both bobsled gears: Wide rings on bottom bolster, to prevent short turns; bolster supports brackets on runner tops for each runner to flex individually over rough ground and for better snow clearance.
Shoes are 3/4" thick cast iron. 4" x 4" tapered tongue complete with all hardware is included.
Note: Same style for both sizes; the difference lies in the width and heaviness of the bottom bolsters.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Wide Bobsled Gears
Wide Bobsled: Runners are 52" apart with a 4" x 6" bolster.
Ideal for sleigh rides or under hay racks, as they will not tip easily.
Features on both bobsled gears: Wide rings on boon bolster, to prevent short turns; bolster supports brackets on runner tops for each runner to flex individually over rough ground and for better snow clearance.
Shoes are 3/4" thick cast iron. 4" x 4" tapered tongue complete with all hardware is included.
Note: Same style for both sizes; the difference lies in the width and heaviness of the bottom bolsters.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

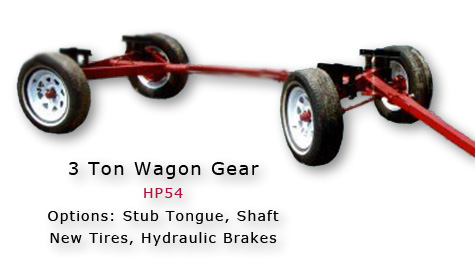

3 Ton Rubber Tire Wagon Gear
All wagon gears are powder coated, so not only will you have a quality product but also one with a beautiful finish.
All wagon gears come standard with team pole, new tires, hydraulic brakes.
PRICE: Please Call.
(Snow runners available to put on gear for winter use. To use these runners on the rubber tire gears, just unbolt and take off the wheels
and put on the runners and rebolt. $295.00 a pair or $590.00 for set of four.)
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

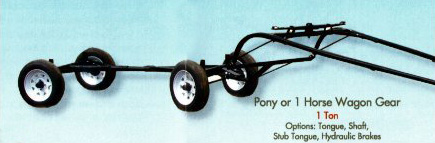

1 Ton Pony or 1 Horse Rubber Tire Wagon Gear
Pony or 1 horse wagon gear.
All wagon gears are powder coated, so not only will you have a quality product but also one with a beautiful finish.
1-Ton Gear
PRICE: Call.
(Snow runners available to put on gear for winter use. To use these runners on the rubber tire gears, just unbolt and take off the wheels
and put on the runners and rebolt.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

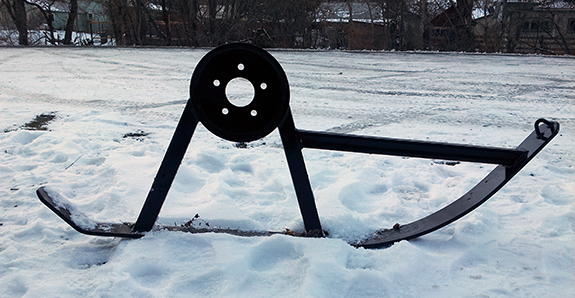

Snow Runners
Use these snow runners for winter use. Just unbolt and take off the rubber wheels. Put on the snow runners and rebolt.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
Shaves & Team Poles
-

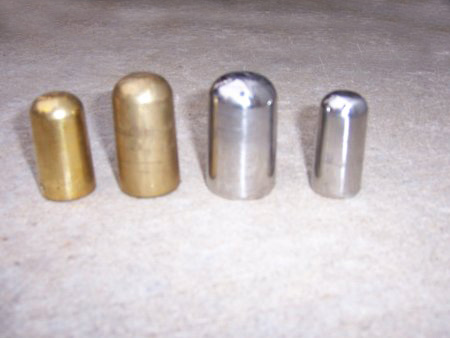

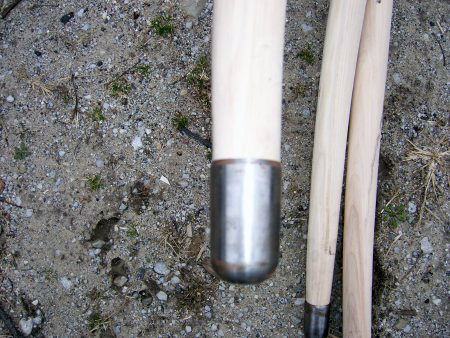

Brass & Nickel Plated Shaft Tips
BRASS PLATED SHAFT TIPS:
7/8"
1"
1-1/8"
1-1/4"
NICKEL PLATED SHAFT TIPS:
7/8"
1"
1-1/8"
1-1/4"
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Pole and Evener Kit
Available for Ponies, Miniature Horses, Standard Horses and Draft Horses. PLEASE SPECIFY.

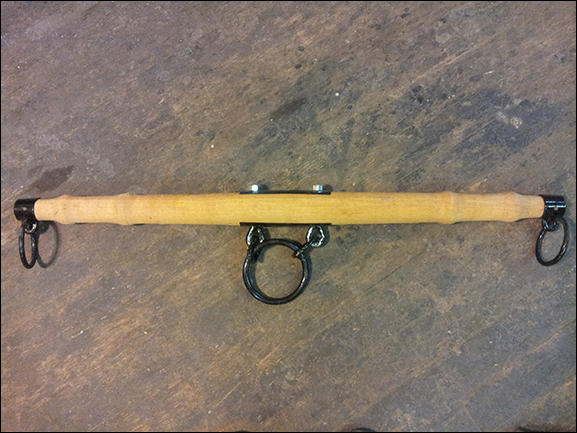

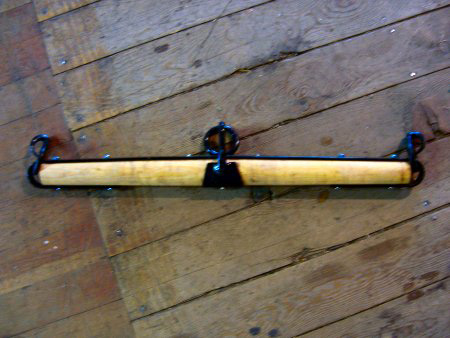

Available in kits which include pole, evener, single trees, neck yoke, leather yoke, irons, end cap, evener caster clevis and plates, safety loops, hooks and ferrules.
Bolts are not included and irons are not formed.
Kits are available in either single or double and pole.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

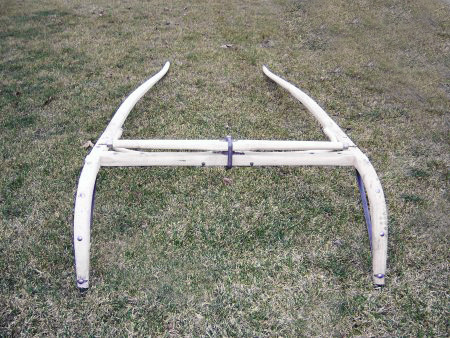

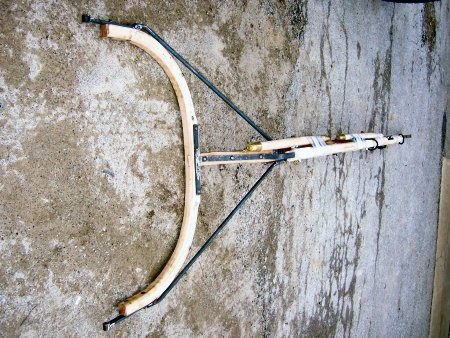

Single Bend Shaves
Single Bend Shaves available for Ponies, Miniature Horses, Standard Horses and Draft Horses. PLEASE SPECIFY.
Available in natural wood, complete, with iron.
Can be painted to specifications.
(Unassembled shaves for easy shipping minus $35.)
Single Trees: There are two styles of single trees available depending if your tugs have elongated holes or heel chains.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Double Bend Shaves
Available in natural wood, complete, with iron.
Can be painted to specifications.
There are two styles of single trees available depending if your tugs have elongated holes or heel chains.
Assembled or unassembled. Please specify.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

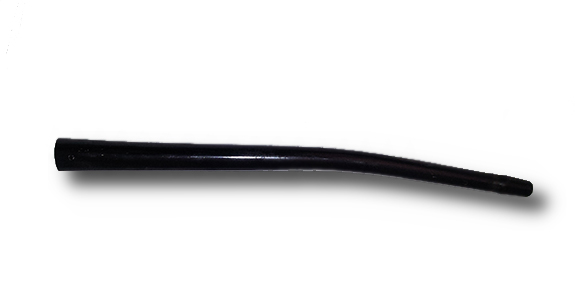

Metal Shaft Repair Kit
Shaft Repair End
30" long and fits right or left side: $28.00 + S & H
24" long:
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
Single Trees & Double Trees
-

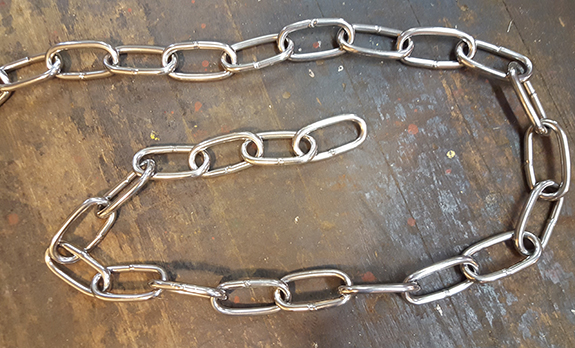

Stay Chains
Stainless Steel, long length, stay chain.
Can be cut to desired length.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

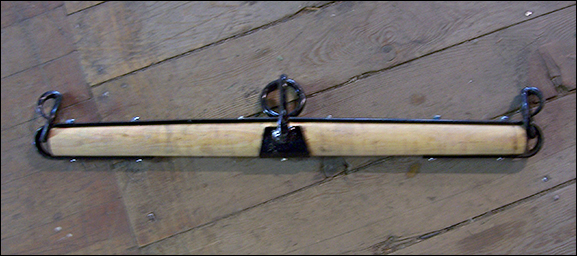

Single Trees
Specify For Pony, Miniature, Standard or Draft Horse.
Made of Hickory, with a ring.
Ironed Hardwood Single Trees
PRICE: Please Call.
28"
30"
32"
34"
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

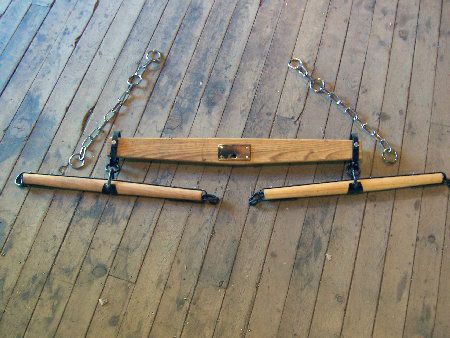

Double Trees For:
Pony, Mini, Standard, Draft.
Double Trees with Stay Chain Clevis.
Pony:
30"/22"
32/22"
34"/24"
36"/26"
Mini:
26"/20"
Standard & Draft:
38"/26"
40"/28"
42"/30"
44"/32"
48"/34"
Stay Chains are pictured, but not included.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
Wagon and Cart Wheels
-

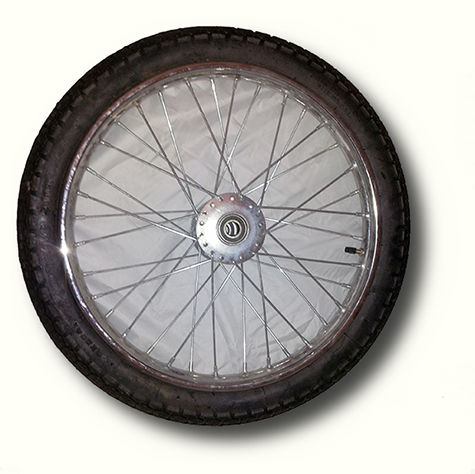

Wire Wheel for Carts
Wire wheel cart replacement wheels.
Diameters available: 20" and 24"
PRICE:
20"
24"
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

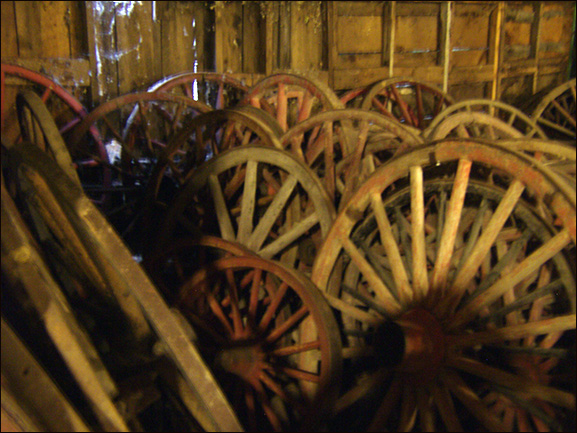

Wagon Wheels
Wagon Wheels: We have a large assortment of large wagon wheel sets and singles for you to pick from.
PRICE vary from $150.00 to $400.00 for the big heavy freight wagon wheels.
Also, for you cannon builders, there are pairs available.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

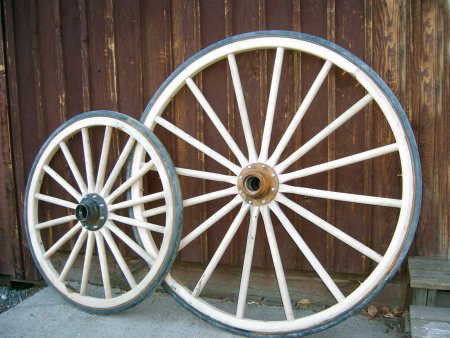

Wagon Wheels
Wood Wheels: Priced at four standard sized wheels per set; if less than four or other sizes are needed, call for quote.
Our wheels fit one inch or 1-1/4" roller bearing axles.
Finished in channel and rubber or steel-rimmed.
Spokes are as, 1-1/4" and rims are 1-1/8" by 1-1/38" on the standard size.
We also stock 48" channel and rubber edged wheels for carts and many other sizes.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

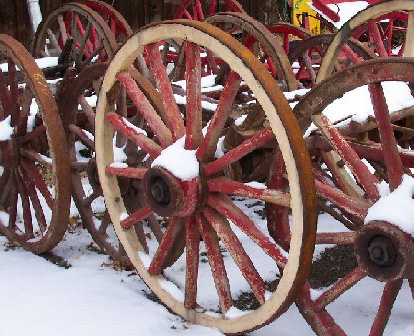

Wagon Wheel Restoration and Repair
We do wheel repairs, minor or major.
If you want to keep your original axles but your spindles are worn out, you can cut them off and weld on new stubs.
Axle stubs have approximately 4" square part of axle from machine portion to weld on the old axle.
State axle size when ordering.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

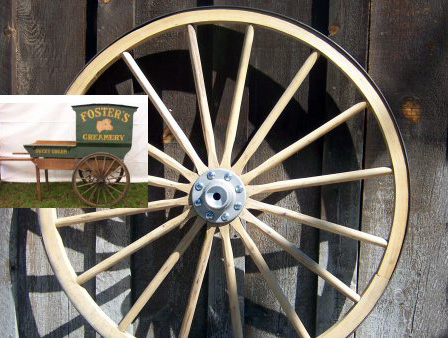

Decorator Wagon Wheels
These wheels come with a solid metal hub. Wooden hubs are also available but at a different cost. These wheels could be used on a flower cart like the one pictured.
The outside rim of the wheel has a sturdy metal band.
The wheels can be made in different sizes, IF ordered in quantity. Price will vary.
Approx. Diameter 42" to 38' (standard stock size).
Other sizes available upon request. Call for a quote.
Material: Ash or Hickory
These wheels can be used for making a fence, push carts, wall hangers, furniture, a see through wall. Whatever you can imagine. (They are not for use on a standard horse drawn vehicles).
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

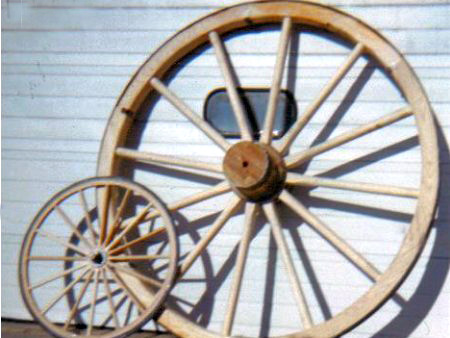

Custom Built Large Decorator Wagon Wheels
The LARGE wheel pictured is 7 1/2' in diameter and can be used for decor.
We custom make in any diameter.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

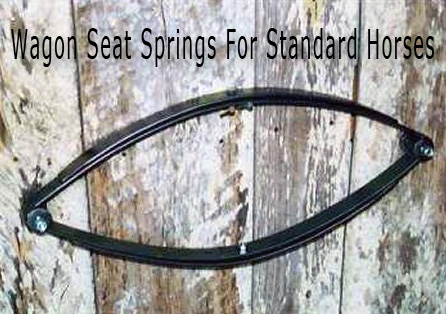

Wagon Seat Springs
Elliptical leaf springs made of iron.
Heavy duty construction.
PRICE: Please Call. Light: 1-1/4" x 24" two leaf
1-1/2" x 24" two leaf
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

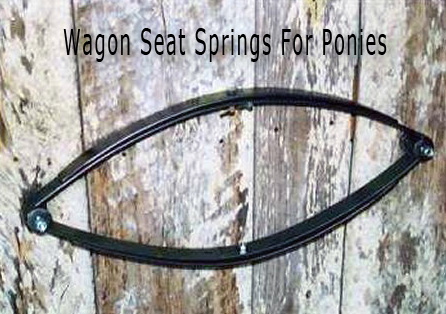

Pony Wagon Seat Springs
Elliptical leaf springs.
Iron Construction.
Size: 1-1/4" x 18"
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

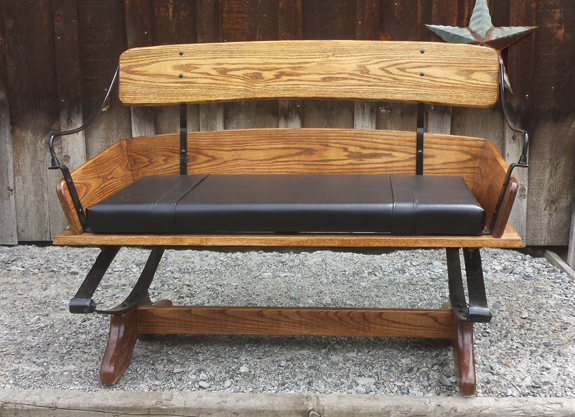

Porch Seat
Horse drawn vehicle porch seat is made of ash, stained, varnished and comes with seat cushion.
Can be shipped, but will be unassembled, so some reassembly will be required.
Additional charge for packaging is $10.00, plus shipping.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

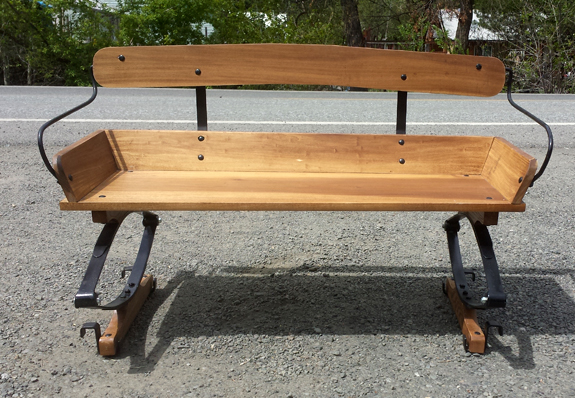

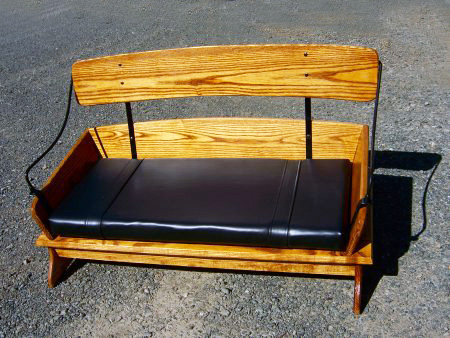

Vehicle Seat
This finished wagon seat is made of poplar, comes with cushion, hardware ready to mount on your 38" to 42" wagon box.
It can also be made in ash for additional $30.00 more.
Add additional $10.00 for packaging.
Will have to be unassembled some for shipping, so some assembly will be required.
UNFINISHED.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-

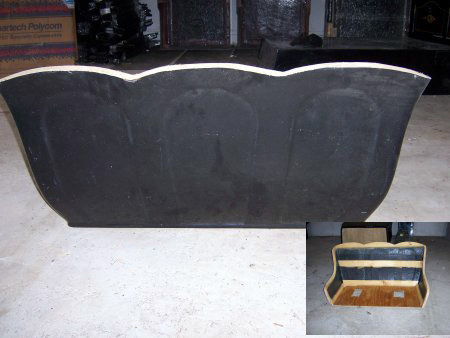

Fiberglass Auto Seat
Black, reinforced durable fiberglass construction.
Seats come as pictured or straight across the top back.
Available in 3 sizes:
36" X 18"
40" x 18"
46" x 18"
The fiberglass seat is ready to be upholstered in a material of your choice.
Tuft & button design.
Call for upholstery PRICE.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
Lamps & Lamp Brackets
-

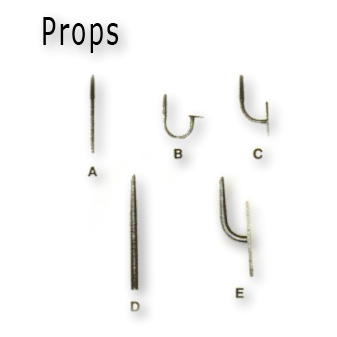

Lamp Bracket Props
Tapered mounting stems; mild steel, intended to be permanently attached to carriage.
May be bent, welded, bolted or riveted to carriage.
90 degrees and 180 degrees come with bolting plate welded to stem.
#1 Props:
A: Straight, B: 180 degrees, C: 90 degrees.

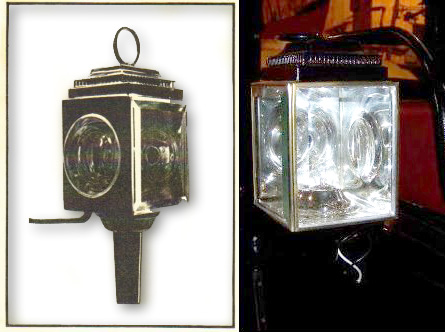

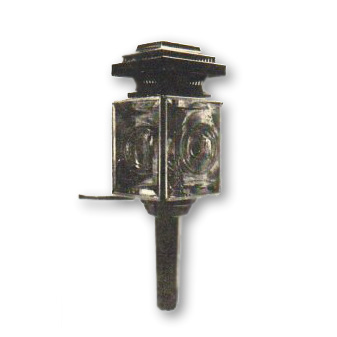

Fits our Anderson Square and Cart Lamps.
Also fit many smaller original lamps, tapers from 38" to 9/16".
#2 Props:
D: Straight. E: 90 degrees.
Fits our Patrician Mail Lamps.
Also fit many larger original lamps. Tapers from 1/2" to 3/4".
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Anderson Square Lamps
Neat and stylish design.
Beveled glass front and side, red glass in door, brass mounted, nickel linings, black outside.
American style mounting brackets.
Available in oil, 12- volt, or candle burning models.
Suitable for Surreys, Rockaways, small Vis-a-vis. Also work well on traps and Runabouts.
Size: 4-1/2" x 5"
Length: 15 inches.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Patrician Mail Lamps
A very fine lamp.
Convex beveled glass in front.
Flat beveled glass on side. Red glass in back.
Nickel lined throughout.
Finished in black with choice of brass or nickel mounting.
Available in candle burning or 12 Volt models. American style mounting brackets (to receive #2 props).
Specify bright metal or black tails.
A beautiful lamp for Cabriolets, Victorias, or large Vis-a-vis.
Excellent for brakes and small coaches with new coach style heads.
SPECIAL ORDER ONLY (allow 3 months).
Diameter of Body 6".
Length 20".
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Cart lamps
Beveled glass, round in front, red glass in door.
Nickel linings, black outside.
American style mounting brackets sold separately.
Available in oil or 12 Volt model.
Size of body: 4-1/2" x 5".
Length: 13 inches
Pair Oil lamps
Pair 12 Volt lamps
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
Steps
-
Axle Step/Step Plate
Axle Step with one with peg on it.
4-1/2" x 4-1/2" and is 9-1/4" overall.
Step Plate: 4-1/2" in diameter.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Wagon Steps
Square wagon step.
4" x 5" wide. 7" high.
Made of male able iron.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
Tools, Axles, Wagon Tongues, Brakes & Miscellaneous Parts
-
Safety Latches for Pole Ends
Safety Latch: (pictures are showing it latched and unlatched.)
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Double Reach Fifth Wheel
Old Style Double Reach Fifth Wheel.
Made of malleable Iron. 15" top and 13" bottom.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Leather Wheel Washers
Washers made of leather to tighten partially worn hubs and axles.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Wagon Shaft Couplers
These are unpainted shaft couplers for hooking the shaft to the vehicle.
Threads are 3-1/2" long by 7/16" with a 3/8" bolt.
Specify 1" or 1-1/8" axle.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Seat Arm Rail & Back Brace
Set includes: two pair of seat arm rails and one pair of seat back braces, unpainted.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Single Rail Bracket
Single rail bracket for buckboard or light spring wagon.
Parts are cast from original parts.
Takes 8 for single buckboard.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Two Rail bracket
Two rail bracket popular with outfitters and campers who need to tie on a load.
Takes 8 for buckboard.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Hammer Strap
The hammer strap is used to hold the double tree on the wagon tongue.
1-1/2" wide and has a 5/8" hitch pin hole.
It is made of powder coated steel.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Wagon Brake Kit
Antique Style Brake Kit includes:
Brake bar, brake pedal or slide lever, rubber blocks.
PRICE: Please Call.
Add $20.00 for wood brake blocks.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Ash Wagon Tongues
Wagon tongues made from ash.
12' in length.
3.5" X 4.5" thick.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Horse Drawn Vehicle Axles
Solid steel axles available in roller bearing style or sarven.
Sizes: Any length in 2" increments.
Axle widths available:
1", 1-1/8", 1-1/4", 1-1/2", 2"
PRICE: Vary. Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Wagon Pole Ends
Wagon tongue/pole ends for pony, haflinger/standard and draft sizes.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
Neck Yokes & Bows
-
Neck Yokes For Pony, Standard, Draft Horse
Pony Size: Hickory.
Bolt on style
Ring style
Mini Yoke (26") Size: Hickory.
Bolt-on style
Ring style
Standard size. Hickory.
Bolt-on-style
Ring style
Draft 40": Hickory.
Bolt style
Ring style
Draft 48":
Bolt style
Ring style
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Ox Yokes
Our Ox Yoke Bows:
Available in 1-1/2" and 2-1/2" diameters.
Space: Approx. 8" space between.
Length: Average of 26" in length.
Other sizes available upon request. They are special order only.
To measure your ox yoke to see what size bow you need to order, we need two measurements of the following:
1. You need to measure how far apart the holes are. Best way is the center of the hole to the center of the adjacent hole.
2. We need to know the diameter of the holes.
We also have whole Ox Yokes.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Steel Neck Yokes
Steel neck yokes for Pony, Standard and Draft:
Pony:
Standard:
Draft: Steel neck yoke, with four inch ring.
Sizes: 40"-48" on two inch increments
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
-
Neck Yoke Rings
The neck yoke ring comes in 3" 4".
We also carry Neck Yokes, bolt style.
PRICE: Please Call.
For More Info About This Item:
wagons@oxbowwagonsandcoaches.com
Contact us by phone, e-mail or fax for more information or to place an order.
